footprint 1/2W Metal oxide film fixed resistor for Telecommunications

Flameproof Metal Oxide Film Fixed Resistor
Tolerance:±2%, ±5%
Resistance Value Range:1 OHM - 510K OHM
Testing standard:JISC 5202
RoHS and REACH compliant product
Availability:
Quantity:
  • MOF- Metal oxide film resistor

  • HKR

SPECIFICATIONS:


1. Applicable scope:

1.1 This specification is for use in METAL OXIDE FILM FIXED RESISTORS

1.2 Characteristics and specifications are according to those of : JIS C 5202

1.3 RoHS and REACH compliant product

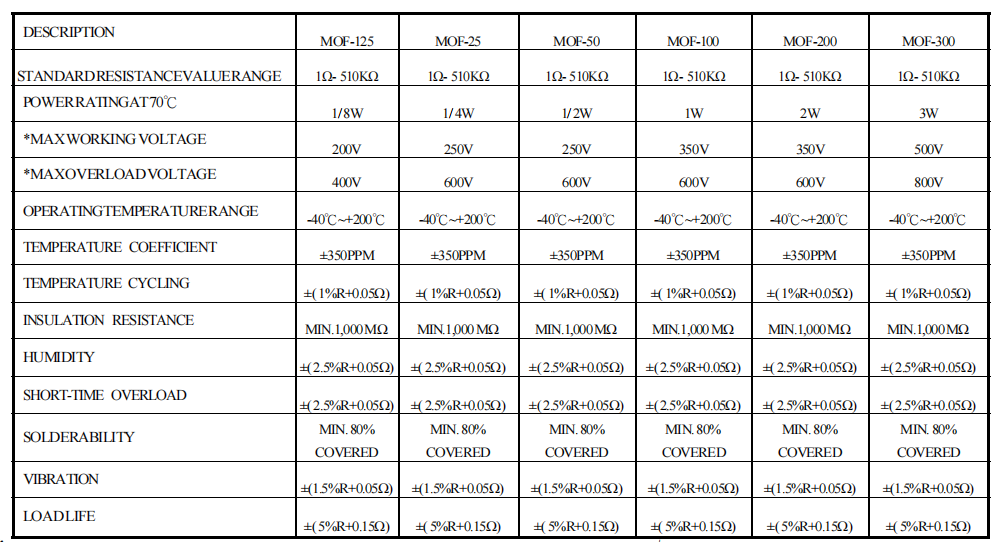

2. Specifications:

4

* The working voltage is calculated based on the resistance value following the formula of V=√(P*R) or to its maximum extent as indicated above.

* The overload voltage is calculated based on the resistance value following the formula of V= 2.5 *√(P*R) or to its maximum extent as indicated above.
