CFR
HKR
1/8W

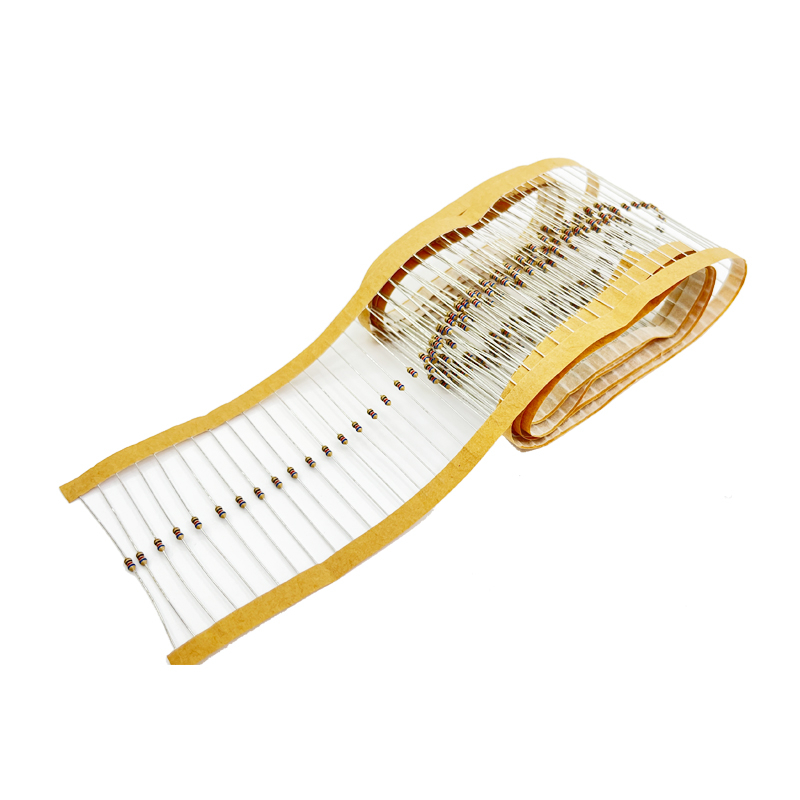

Item Name: carbon film fixed resistors
Type: Through Hole Resistor
Place of Origin: Sichuan, China
Brand Name: HKR
Application: automatic plug-in
Rated Power: 1/8W 1/4W 1/2W 1W 2W 3W 5W
Resistance: 1-22M
Supplier Type: Original manufacturer,
Operating Temperature: -55℃ to +275℃
Size: CF125 L D H d
3.5±1.5 1.7±0.5 27±0.5 0.4±0.05
Carbon Film Resistor 3W 5% 1ohm~4.7M ohm
Max Working Voltage: 500V
Max Overload Voltage: 1000V
Operating Temperature Range: -55℃ to +155℃
TCR: ±350PPM -400PPM -600PPM -1000PPM
Voltage Coefficient: Max 50 PPM/V
Insulation Resistance: Min. 1000M ohm
Humidity: ±3%
Short Time overload : ±１％R ＋０.０５ohm
Solderability: Min 95% covered
Vibration： ±１％R ＋０.０５ohm
Load Life: Max ±5%
Why choose us?
1.Fast delivery time
With adequate monthly capacity of SMD resistors 15 Billion PCS and through hole resistors 20 Million PCS, we can secure fast delivery time to all the customers.
2. High quality
With more than 35 years in the industry, we well know the relevant standards and manufacture products based on requirements, also we have perfect quality system and tools to monitor the product from raw materials to finished products to secure quality .
3. Professional and reliable team
With a professional and experienced team, we understand every requirement of our customers and always try out best to satisfy them.
4. Quick Response
If you have any enquires or problem, please feel free to contact with us, we will try to answer you within 24 hours.
F.A.Q
Question 1
Question: Does the sample fee can be returned?
Answer: We can provide free samples.
Question 2
Question: How long will it take to receive my order?
Answer: The lead-time depends on your order quantity and destination.
Welcome to contact us freely for more details about our products!
