1.APPLICABLE SCOPE :
1.1 This specification is for use in METAL FILM FIXED RESISTORS
1.2 Characteristics and specifications are according to those of : JIS C 5202
1.3 RoHS and REACH compliant product

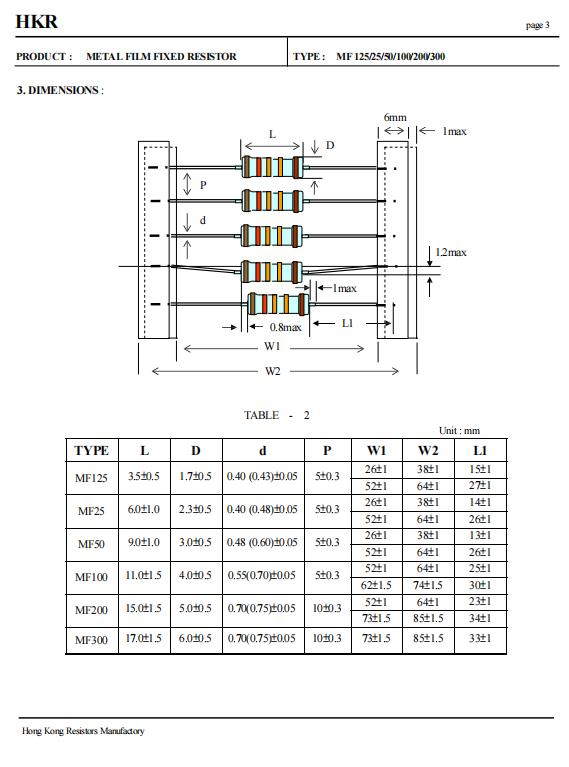

TYPE | L | D | d | P | W1 | W2 | L1 |
MF125 | 3.5±0.5 | 1.7±0.5 | 0.40 (0.43)±0.05 | 5±0.3 | 26±1 | 38±1 | 15±1 |
52±1 | 64±1 | 27±1 | |||||
MF25 | 6.0±1.0 | 2.3±0.5 | 0.40 (0.48)±0.05 | 5±0.3 | 26±1 | 38±1 | 14±1 |
52±1 | 64±1 | 26±1 | |||||
MF50 | 9.0±1.0 | 3.0±0.5 | 0.48 (0.60)±0.05 | 5±0.3 | 26±1 | 38±1 | 13±1 |
52±1 | 64±1 | 26±1 | |||||
MF100 | 11.0±1.5 | 4.0±0.5 | 0.55(0.70)±0.05 | 5±0.3 | 52±1 | 64±1 | 25±1 |
62±1.5 | 74±1.5 | 30±1 | |||||
MF200 | 15.0±1.5 | 5.0±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 52±1 | 64±1 | 23±1 |
73±1.5 | 85±1.5 | 34±1 | |||||
MF300 | 17.0±1.5 | 6.0±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 73±1.5 | 85±1.5 | 33±1 |

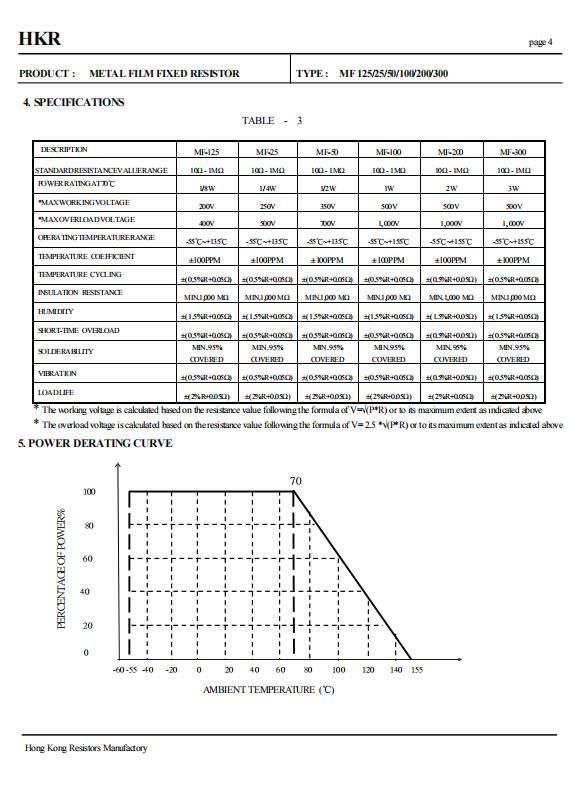

4. SPECIFICATIONS
TABLE - 3
DESCRIPTION | MF-125 | MF-25 | MF-50 | MF-100 | MF-200 | MF-300 |
STANDARDRESISTANCEVALUERANGE | 10Ω- 1MΩ | 10Ω- 1MΩ | 10Ω - 1MΩ | 10Ω- 1MΩ | 10Ω - 1MΩ | 10Ω- 1MΩ |
POWERRATINGAT70℃ | 1/8W | 1/ 4W | 1/2W | 1W | 2W | 3W |
*MAXWORKINGVOLTAGE | 200V | 250V | 350V | 500V | 500V | 500V |
*MAXOVERLOADVOLTAGE | 400V | 500V | 700V | 1,000V | 1,000V | 1,000V |
OPERATINGTEMPERATURERANGE | -55℃~+135℃ | -55℃~+135℃ | -55℃~+135℃ | -55℃~+155℃ | -55℃~+155℃ | -55℃~+155℃ |
TEMPERATURE COEFFICIENT | ±100PPM | ±100PPM | ±100PPM | ±100PPM | ±100PPM | ±100PPM |
TEMPERATURE CYCLING | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) |
INSULATION RESISTANCE | MIN.1,000 MΩ | MIN.1,000 MΩ | MIN.1,000 MΩ | MIN.1,000 MΩ | MIN.1,000 MΩ | MIN.1,000 MΩ |
HUMIDITY | ±(1.5%R+0.05Ω) | ±(1.5%R+0.05Ω) | ±(1.5%R+0.05Ω) | ±(1.5%R+0.05Ω) | ±(1.5%R+0.05Ω) | ±(1.5%R+0.05Ω) |
SHORT-TIME OVERLOAD | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) |
SOLDERABILITY | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED |
VIBRATION | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) | ±(0.5%R+0.05Ω) |
LOADLIFE | ±(2%R+0.05Ω) | ±(2%R+0.05Ω) | ±(2%R+0.05Ω) | ±(2%R+0.05Ω) | ±(2%R+0.05Ω) | ±(2%R+0.05Ω) |
* The working voltage is calculated based on the resistance value following the formula of V=√(P*R) or to its maximum extent as indicated above
* The overload voltage is calculated based on the resistance value following the formula of V= 2.5 *√(P*R) or to its maximum extent as indicated above
