SQM
HKR

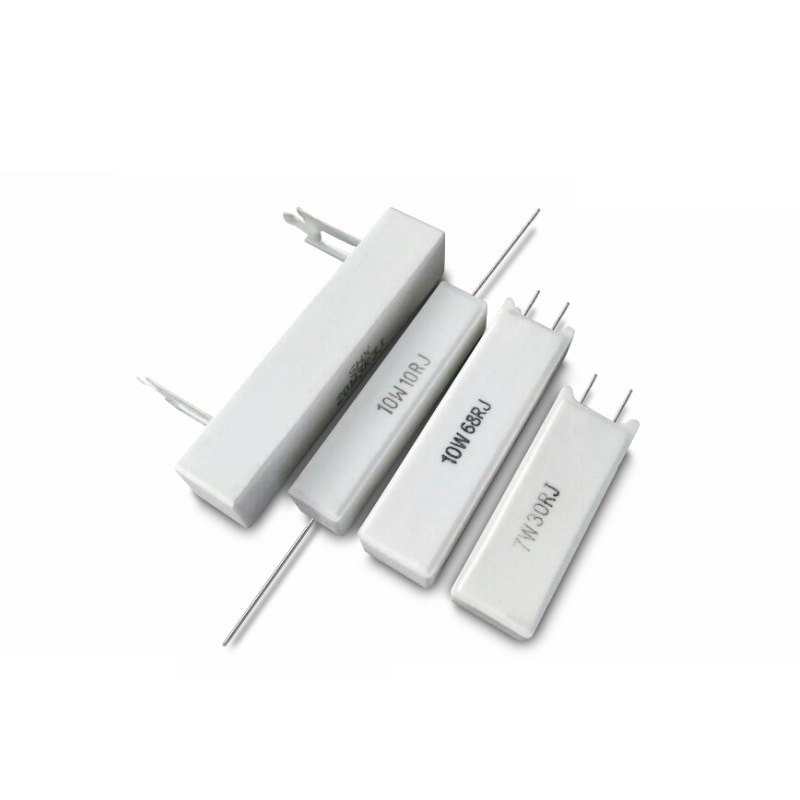

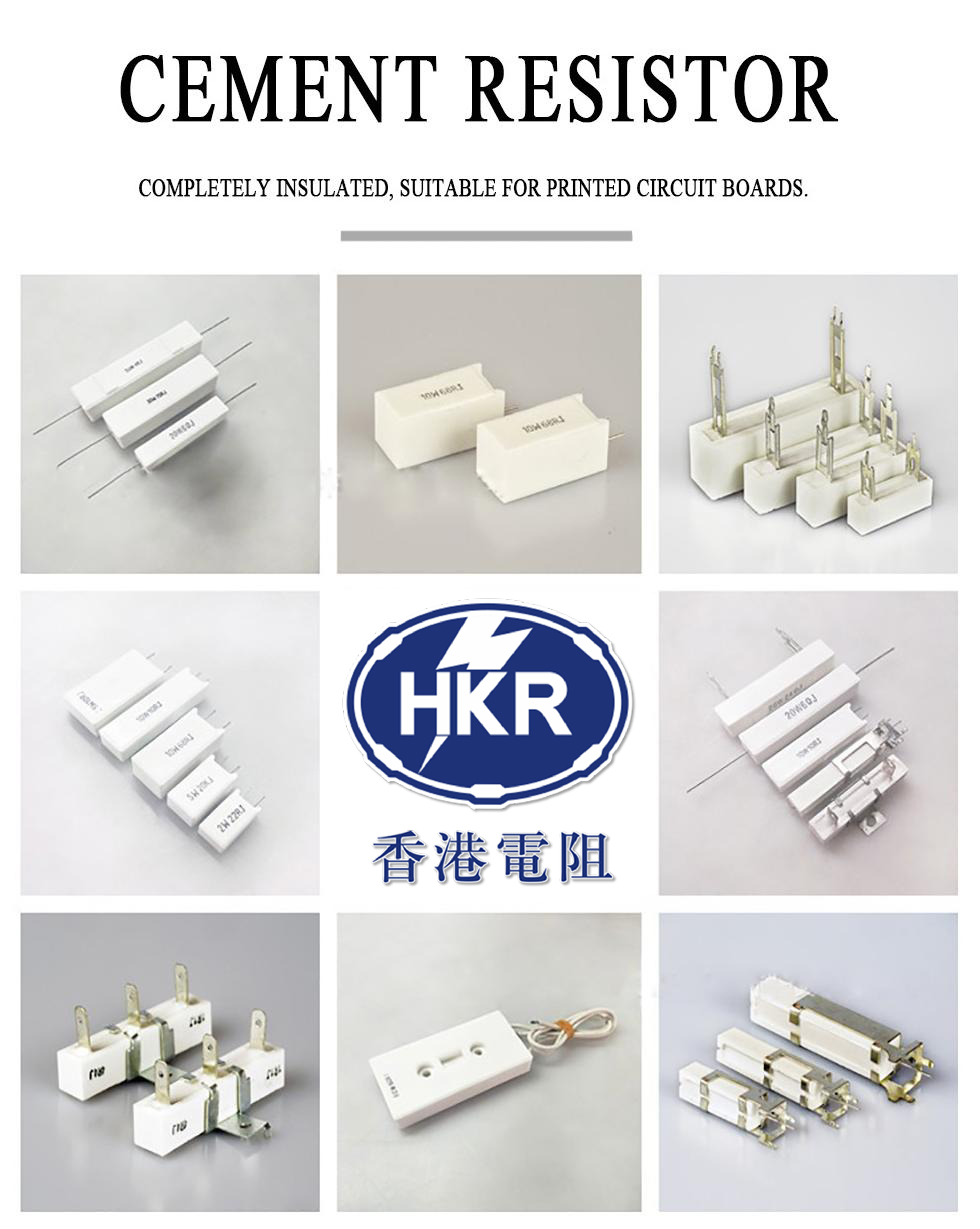

Cement resistors are made by cut trimming metal oxide film core or winding resistance wires around non-alkaline ceramic core, either is added with a layer of heat and humidity resistant and non-corrosive protective material. The wire wound resistor or metal oxide resistor is then placed in a square ceramic package sealed with special nonflammable heat-resistant cement
Feature:
1)Wide Resistance Range: 0.1 Ohm - 100K Ohm
2)Power Tating: 1W,2w, 3w, 5w, 7w, 10w, 15w, 20w, 30w, 40w, 50w, 80w, 100w
3)Maximun Working Voltage: 250v, 300v, 350v, 500v, 700w, 1000w
4)Maximun Overload Voltage: 500v, 600v, 700v, 850w, 1000v
5)Good heat-durability,low temperature coefficient, low noise,high load power,high insulating capacity.
6)Operating ambient temperature:-55°C to +275°C
7)Tolerance: +/-1%~+/-10%
SQM TYPE

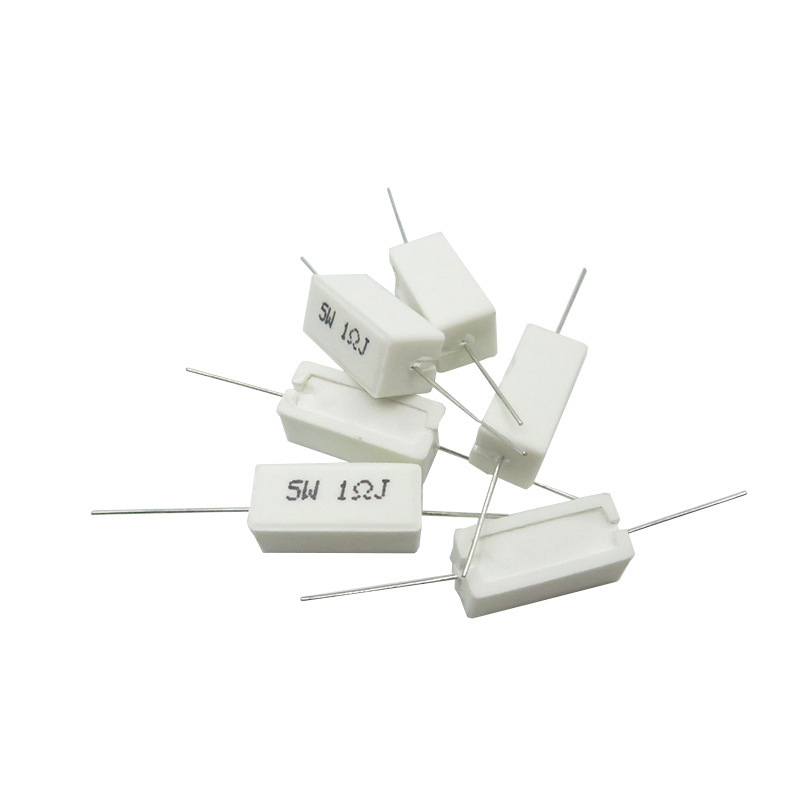

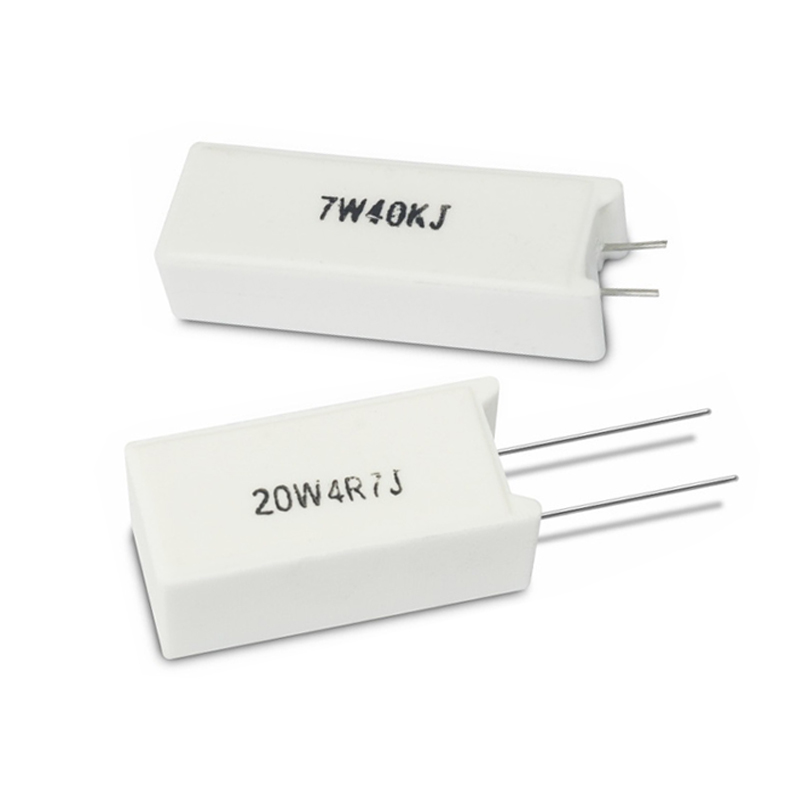

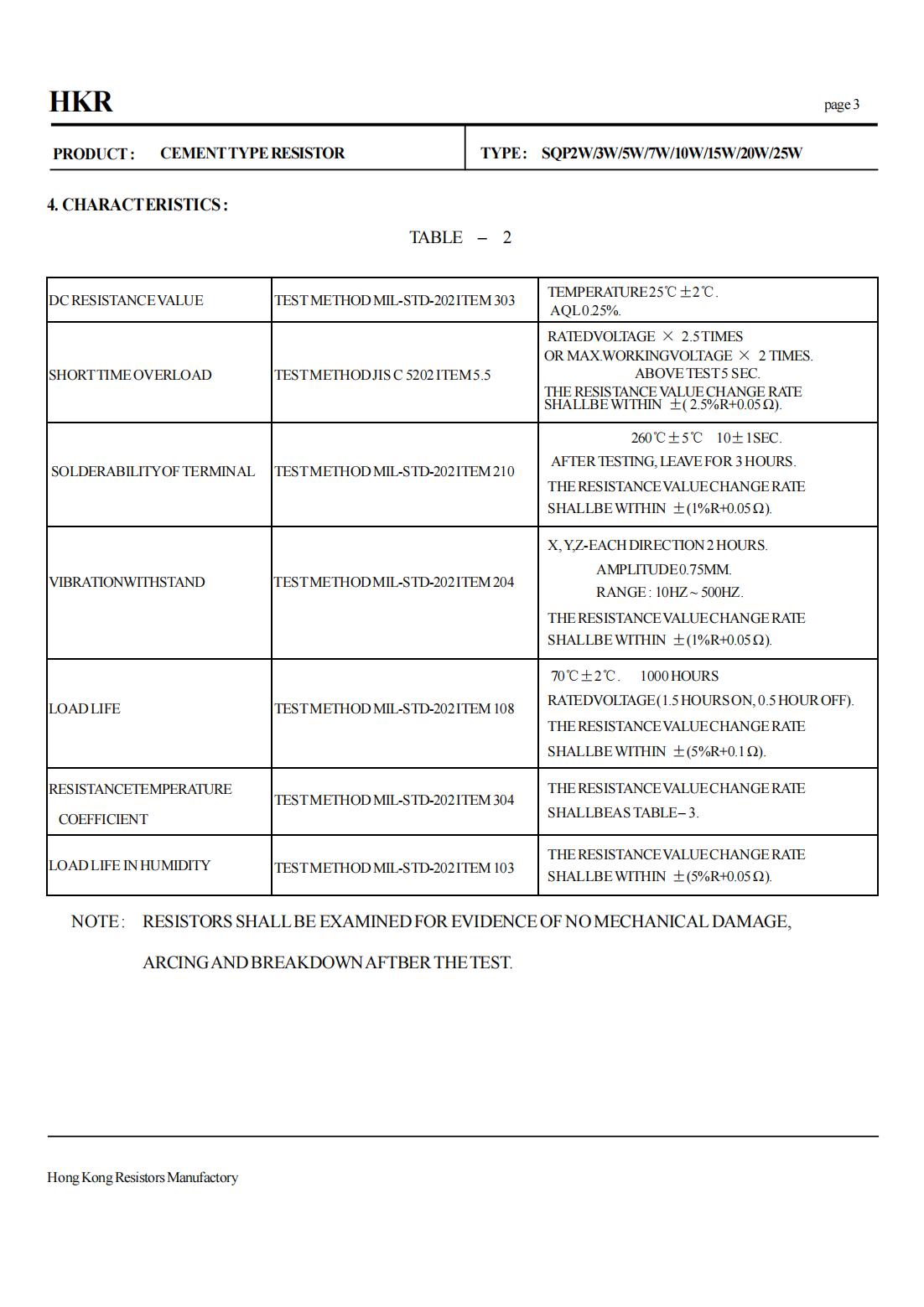

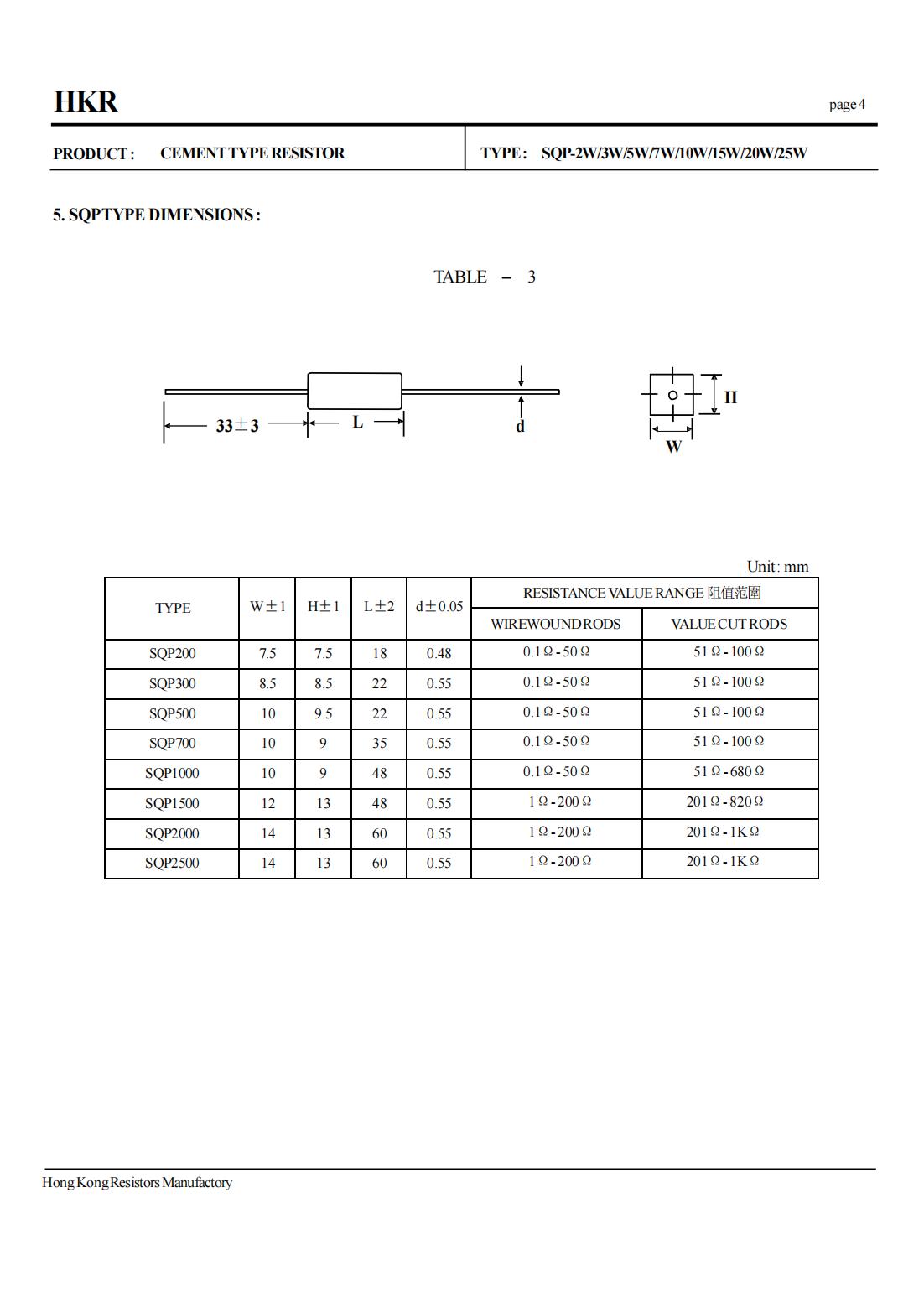

SQP TYPE
SQZ TYPE
Cement resistors are made by cut trimming metal oxide film core or winding resistance wires around non-alkaline ceramic core, either is added with a layer of heat and humidity resistant and non-corrosive protective material. The wire wound resistor or metal oxide resistor is then placed in a square ceramic package sealed with special nonflammable heat-resistant cement
Feature:
1)Wide Resistance Range: 0.1 Ohm - 100K Ohm
2)Power Tating: 1W,2w, 3w, 5w, 7w, 10w, 15w, 20w, 30w, 40w, 50w, 80w, 100w
3)Maximun Working Voltage: 250v, 300v, 350v, 500v, 700w, 1000w
4)Maximun Overload Voltage: 500v, 600v, 700v, 850w, 1000v
5)Good heat-durability,low temperature coefficient, low noise,high load power,high insulating capacity.
6)Operating ambient temperature:-55°C to +275°C
7)Tolerance: +/-1%~+/-10%
SQM TYPE
SQP TYPE
SQZ TYPE
