HKR brand high precision chip resistors 0201 0402 0603 0805 1206 1210 2010 2512 tolerance 0.1% 0.25% 0.5% 100ppm

Resistance Value： 10 ohm~1M ohm

TCR(ppm): ±10  ±15  ±25  ±50

Features:

AEC-Q200 Compliance

Advanced thin film technology

Special materials,design and processing for high sulfur applications

Special Electrical Specifications

0402  1/16W   1.00*0.5*0.3mm

0603   1/16W   1.55*0.8*0.45mm

0805   1/10W   2.00*1.25*0.55mm

1206    1/8W    3.05*1.55*0.55mm

1210    1/4W    3.10*2.40*0.55mm

2010     1/4W    4.90*2.40*0.55mm

2512      1/2W   6.30*3.10*0.55mm

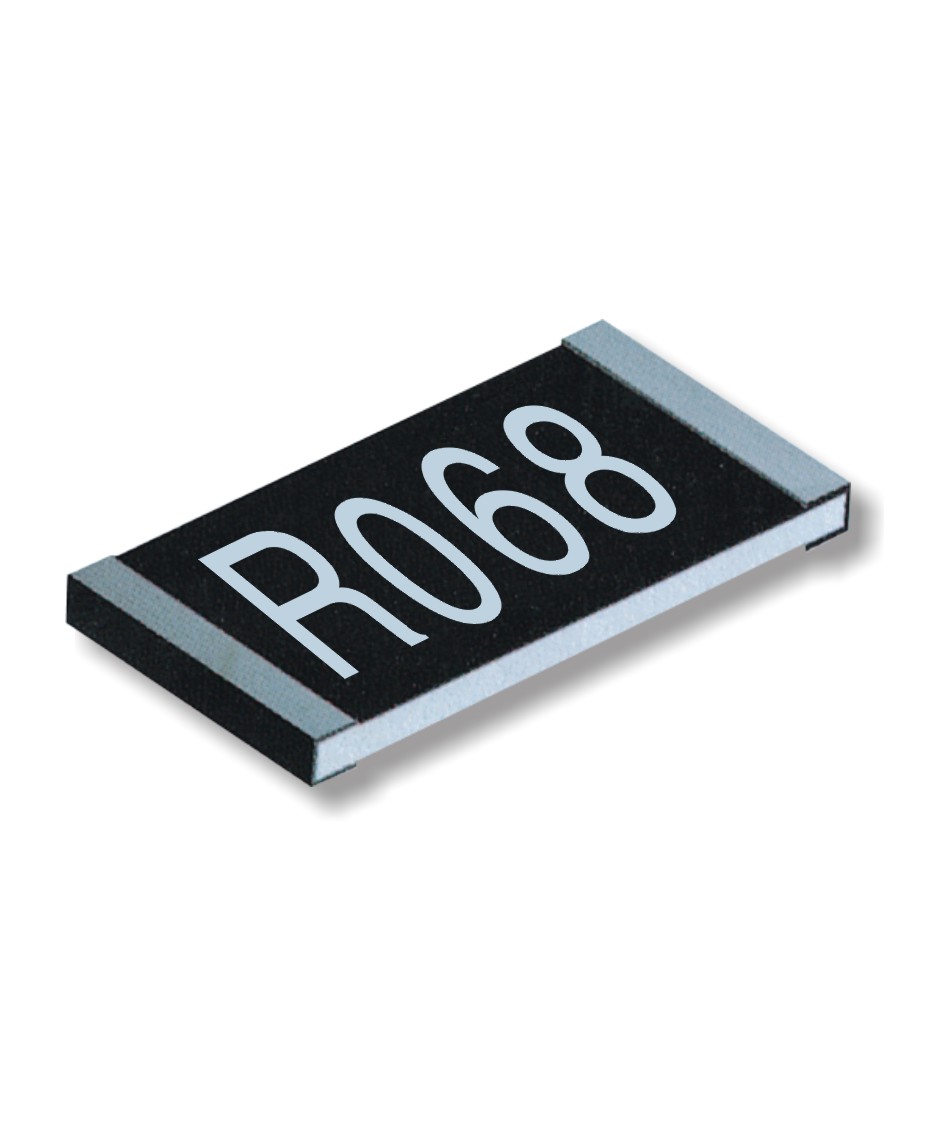

Thin Film Precision Chip Resistor

Operating Voltage=√(P*R) or Max.operating voltage listed above,whichever is lower.

Overload Voltage=2.5*√(P*R) or Max.operating voltage listed above,whichever is lower.

Lower Resistance 1 -10 ohm.
