| Quantity: | |
|---|---|
Packing：Bulk packing
Product type：SQP type , SQM type, SQZ type, SQH type, MPR type
Tolerance：±5%, ±10%
Resistance Value Range：0.1 OHM-150K OHM
Testing Standard：JISC 5202
APPLICABLE SCOPE

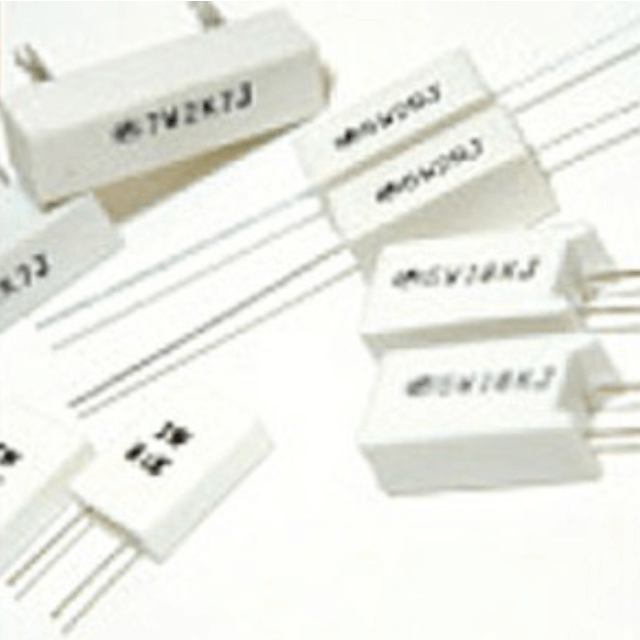

1.1 This specification is for use in CEMENT TYPE RESISTOR
1.2 Characteristics and specifications are according to those of:
MIL-STD-105
MIL-STD-202
JIS C 5202
GB 5731-85
IEC 115-2-1-1982
QC 400101
1.3 RoHS and REACH compliant product
TYPE
It is composed of description , rated wattage , nominal resistance , tolerance and packaging.
2.1 Explanation of part numbers:
2.2 Explanation :
Part Number Description
SQP 1000 10R J BP Cement Type Resistor, 10W, 10Ω, +/-5% tolerance , bulk pack,
SPECIFICATIONS
CHARACTERISTICS
NOTE : RESISTORS SHALL BE EXAMINED FOR EVIDENCE OF NO MECHANICAL DAMAGE, ARCINGAND BREAKDOWNAFTBER THE TEST.
SQP TYPE DIMENSIONS
