APPLICABLE SCOPE

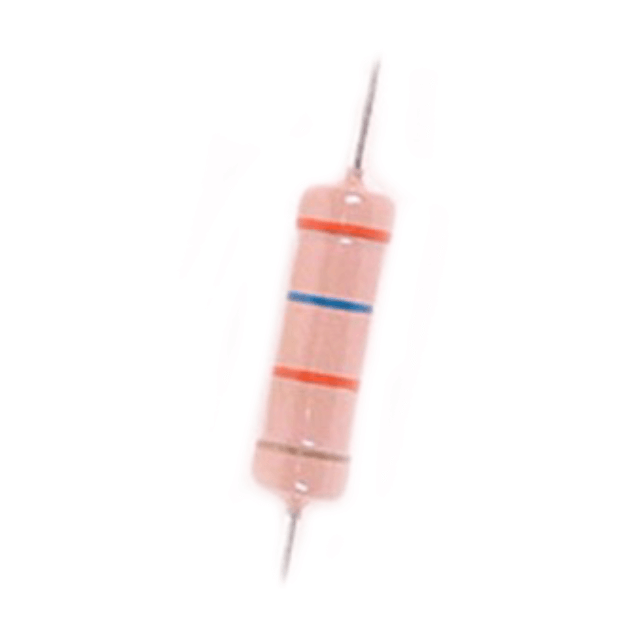

1.1 This data sheet is for use in CARBON FILM FIXED RESISTORS
1.2 Characteristics and specifications are according to those of :
MIL-STD-105
MIL-STD-202
JIS C 5202
GB 5731-85
IEC 115-2-1-1982
QC 400101
1.3 RoHS and REACH compliant product
PART NUMBER
It is composed of description, rated wattage, nominal resistance value, tolerance and packaging.
2.1 Make Up :
SPECIFICATIONS
* The working voltage is calculated based on the resistance value following the formula of V=√(P*R) or to its maximum extent as indicated above
* The overload voltage is calculated based on the resistance value following the formula of V= 2.5 *√(P*R) or to its maximum extent as indicated above
POWER DERATING CURVE
STRUCTURAL DIAGRAM
(1) CORE CERAMIC ROD
(2) RESISTANCE FILM CARBON FILM
(3) TERMINAL TINNED IRON CAP
(4) CONNECTION ELECTRIC WELDING
(5) LEAD WIRE SOLDERED OR TINNED ANNEALED COPPER WIRE
(6) UNDERCOAT ELECTRIC INSULATION VARNISH
(7) FINISHING PAINTING ELECTRIC INSULATION PAINT
(8) INDICATION COLOR CODE INK
CHARACTERISTICS
LOT NO. (Coding System)
PACKING DATA
