APPLICABLE SCOPE :

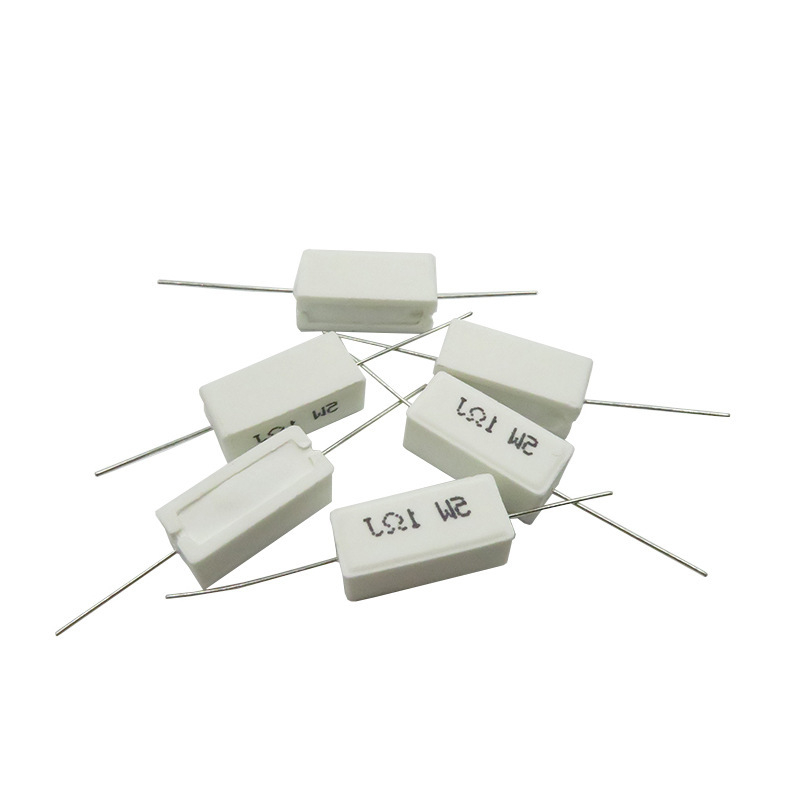

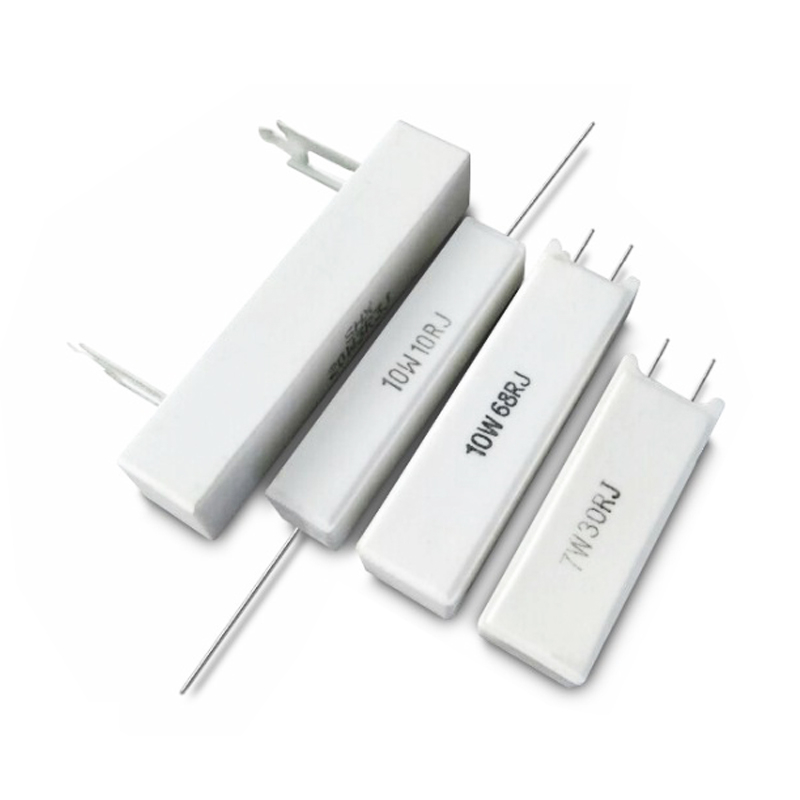

1.1 This specification is for use in CEMENT TYPE RESISTOR
1.2 Characteristics and specifications are according to those of:
MIL-STD-105
MIL-STD-202
JIS C 5202
GB 5731-85
IEC 115-2-1-1982
QC 400101
1.3 RoHSand REACH compliant product
SPECIFICATIONS
TABLE - 1
DESCRIPTION | SQP200 | SQP300 | SQP500 | SQP700 | SQP1000 | SQP1500 | SQP2000 | SQP2500 |
POWERRATINGAT70℃ | 2W | 3W | 5W | 7W | 10W | 15W | 20W | 25W |
OPERATINGTEMP.RANGE | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ | -40℃~+155℃ |
TEMPERATURE COEFFICIENT | ±350PPM | ±350PPM | ±350PPM | ±350PPM | ±350PPM | ±350PPM | ±350PPM | ±350PPM |
INSULATIONRESISTANCE | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ | MIN.20MΩ |
HUMIDITY | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) | ±(5%R+0.05Ω) |
SHORT-TIMEOVERLOAD | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) | ±(2.5%R+0.05Ω) |
SOLDERABILITY | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED | MIN.75% COVERED |
LOADLIFE | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) | ±(5%R+0.1Ω) |
FLAMERETARDANT | NOFLAMING | NOFLAMING | NOFLAMING | NOFLAMING | NOFLAMING | NOFLAMING | NOFLAMING | NOFLAMING |
CHARACTERISTICS :
TABLE – 2
DC RESISTANCEVALUE | TEST METHOD MIL-STD-202 ITEM 303 | TEMPERATURE25℃±2℃ . AQL 0.25%. |
SHORT TIME OVERLOAD |
TEST METHOD JIS C 5202 ITEM 5.5 | RATEDVOLTAGE × 2.5 TIMES OR MAX.WORKINGVOLTAGE × 2 TIMES. ABOVE TEST5 SEC. THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(2.5%R+0.05 Ω). |
SOLDERABILITYOF TERMINAL |
TEST METHOD MIL-STD-202 ITEM 210 | 260℃±5℃ 10±1SEC. AFTER TESTING, LEAVE FOR 3 HOURS. THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(1%R+0.05 Ω). |
VIBRATIONWITHSTAND |
TEST METHOD MIL-STD-202 ITEM 204 | X,Y,Z-EACH DIRECTION 2 HOURS. AMPLITUDE0.75MM. RANGE : 10HZ ~ 500HZ. THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(1%R+0.05 Ω). |
LOAD LIFE |
TEST METHOD MIL-STD-202 ITEM 108 | 70℃±2℃ . 1000 HOURS RATEDVOLTAGE(1.5 HOURS ON, 0.5 HOUR OFF). THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(5%R+0.1 Ω). |
RESISTANCETEMPERATURE COEFFICIENT |
TEST METHOD MIL-STD-202 ITEM 304 | THE RESISTANCE VALUE CHANGE RATE SHALLBEAS TABLE – 3. |
LOAD LIFE IN HUMIDITY |
TEST METHOD MIL-STD-202 ITEM 103 | THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(5%R+0.05 Ω). |
NOTE : RESISTORS SHALL BE EXAMINED FOR EVIDENCE OF NO MECHANICAL DAMAGE,
ARCINGAND BREAKDOWNAFTBERTHE TEST.
Unit : mm
TYPE | W±1 | H±1 | L±2 | d±0.05 | RESISTANCE VALUE RANGE 阻值范圍 | |
WIREWOUNDRODS | VALUE CUT RODS | |||||
SQP200 | 7.5 | 7.5 | 18 | 0.48 | 0.1Ω- 50Ω | 51Ω- 100Ω |
SQP300 | 8.5 | 8.5 | 22 | 0.55 | 0.1Ω- 50Ω | 51Ω- 100Ω |
SQP500 | 10 | 9.5 | 22 | 0.55 | 0.1Ω- 50Ω | 51Ω- 100Ω |
SQP700 | 10 | 9 | 35 | 0.55 | 0.1Ω- 50Ω | 51Ω- 100Ω |
SQP1000 | 10 | 9 | 48 | 0.55 | 0.1Ω- 50Ω | 51Ω- 680Ω |
SQP1500 | 12 | 13 | 48 | 0.55 | 1Ω- 200Ω | 201Ω- 820Ω |
SQP2000 | 14 | 13 | 60 | 0.55 | 1Ω- 200Ω | 201Ω- 1KΩ |
SQP2500 | 14 | 13 | 60 | 0.55 | 1Ω- 200Ω | 201Ω- 1KΩ |
