1.APPLICABLE SCOPE:
1.1 This data sheet is for use in CARBON FILM FIXED RESISTORS
1.2 Characteristics and specifications are according to those of:JIS C 5202
1.3 RoHS and REACH compliant product

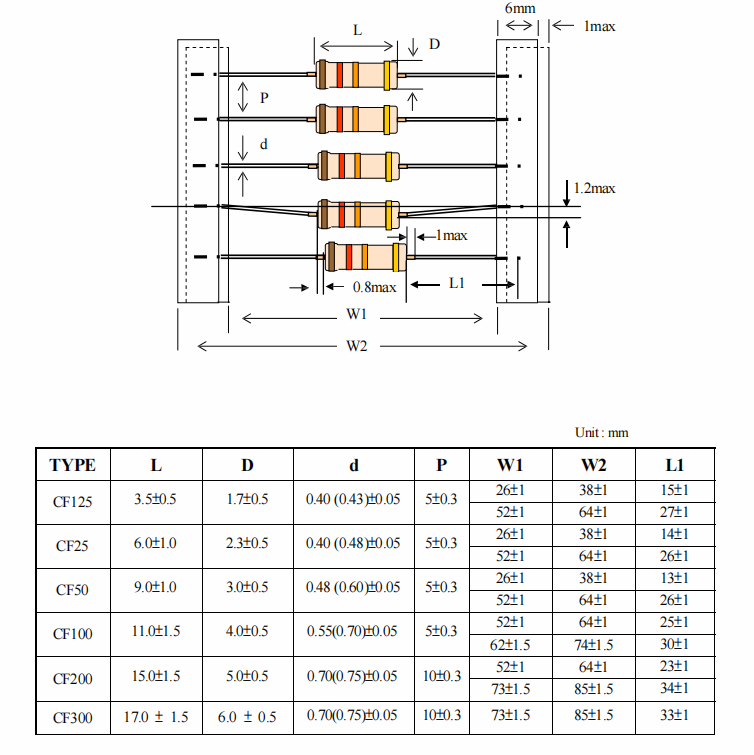

| TYPE | L | D | d | P | W1 | W2 | L1 |
| CF125 | 3.5±0.5 | 1.7±0.5 | 0.40 (0.43)±0.05 | 5±0.3 | 26+1 | 38±1 | 15±1 |
| 52±1 | 64±1 | 27±1 | |||||
| CF25 | 6.0±1.0 | 2.3±0.5 | 0.40 (0.45)(0.48)±0.05 | 5±0.3 | 26±1 | 38±1 | 14±1 |
| 52±1 | 64±1 | 26±1 | |||||
| CF50 | 9.0±1.0 | 3.0±0.5 | 0.48 (0.60)±0.05 | 5±0.3 | 26±1 | 38±1 | 12±1 |
| 52±1 | 64±1 | 26±1 | |||||
| CF100 | 11.0±1.5 | 4.0±0.5 | 0.55(0.70)±0.05 | 5±0.3 | 52±1 | 64±1 | 25±1 |
| 62±1.5 | 74±1.5 | 30±1 | |||||
| CF200 | 15.0±1.5 | 5.0±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 52±1 | 64±1 | 23±1 |
| 73±1.5 | 85+1.5 | 34±1 | |||||
| CF300 | 17.0 ±1.5 | 6.0 ±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 73±1.5 | 85±1.5 | 33±1 |
| DESCRIPTION | CF125 | CF25 | CF50 | CF100 | CF200 | CF300 |
| STANDARD RESISTANCE VALUE RANGE | 1Q-4.7MΩ | 12-4.7MΩ | 12-4.7MΩ | 1Q-4.7MQ | 1Q-4.7MQ | 12-4.7MΩ |
| POWER RATING AT 70℃ | 1/8W | 1/4W | 1/2W | 1W | 2W | 3W |
| *MAX WORKING VOLTAGE | 200V | 250V | 350V | 500V | 500V | 500V |
| *MAX OVERLOAD VOLTAGE | 400V | 500V | 700V | 1,000V | 1,000V | 1,000V |
| OPERATING TEMPERATURE RANGE | -55℃~+135℃ | -55℃~+135℃ | -55℃~+135℃ | -55℃~+155℃ | -55℃~+155℃ | -55℃~+155℃ |
| TEMPERATURE COEFFICIENT ≤10Ω 102-220KΩ 230K2-1MΩ OVER 1MΩ | ±300PPM 0～-500PPM 0～-1,000PPM 0~-1,500PPM | ±300PPM 0~-500PPM 0～-1,000PPM 0~-1,500PPM | ±300PPM 0~-500PPM 0～-700PPM 0~-1,000PPM | ±300PPM 0～-400PPM 0～-600PPM 0～-1,000PPM | ±300PPM 0～-400PPM 0～-600PPM 0～-1,000PPM | ±300PPM 0～-400PPM 0～-600PPM 0～-1,000PPM |
| TEMPERATURE CYCLING | ±(1R%+0.05Ω) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05(2) |
| VOLTAGE COEFFICIENT | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V |
| INSULATION RESISTANCE | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MQ | MIN.1,000MΩ | MIN.1,000MΩ |
| HUMIDITY | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| SHORT-TIME OVERLOAD | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) |
| SOLDERABILITY | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED |
| VIBRATION | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) | ±(1R%+0.05Q) |
| LOAD LIFE | MAX.±5% | MAX.±5% | MAX±5% | MAX.±5% | MAX±5% | MAX.±5% |
