1.APPLICABLE SCOPE :

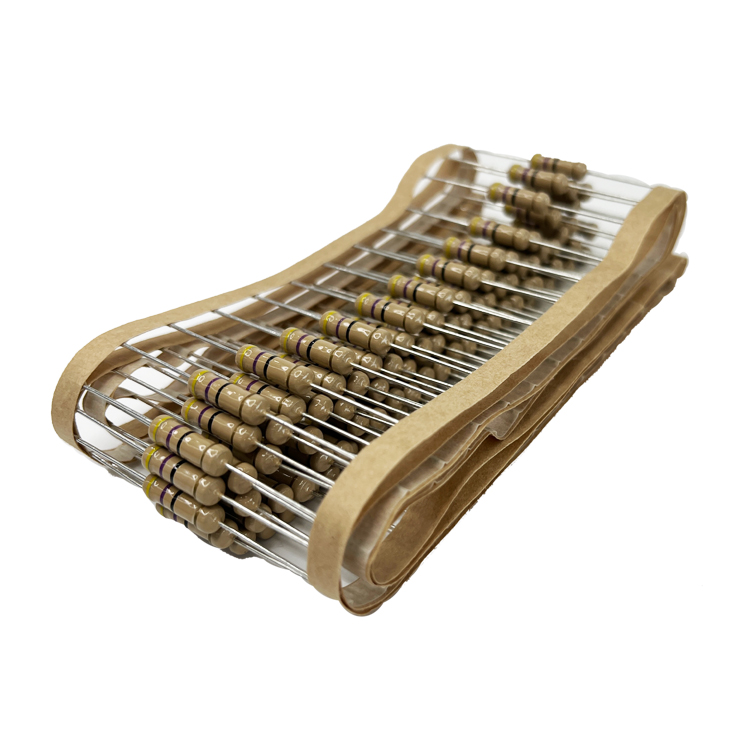

1.1 This data sheet is for use in CARBON FILM FIXED RESISTORS
1.2 Characteristics and specifications are according to those of : JIS C 5202
1.3 RoHSand REACH compliant product
Unit : mm
TYPE | L | D | d | P | W1 | W2 | L1 |
CF125 | 3.5±0.5 | 1.7±0.5 | 0.40 (0.43)±0.05 | 5±0.3 | 26±1 | 38±1 | 15±1 |
52±1 | 64±1 | 27±1 | |||||
CF25 | 6.0±1.0 | 2.3±0.5 | 0.40 (0.48)±0.05 | 5±0.3 | 26±1 | 38±1 | 14±1 |
52±1 | 64±1 | 26±1 | |||||
CF50 | 9.0±1.0 | 3.0±0.5 | 0.48 (0.60)±0.05 | 5±0.3 | 26±1 | 38±1 | 12±1 |
52±1 | 64±1 | 26±1 | |||||
CF100 | 11.0±1.5 | 4.0±0.5 | 0.55(0.70)±0.05 | 5±0.3 | 52±1 | 64±1 | 25±1 |
62±1.5 | 74±1.5 | 30±1 | |||||
CF200 | 15.0±1.5 | 5.0±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 52±1 | 64±1 | 23±1 |
73±1.5 | 85±1.5 | 34±1 | |||||
CF300 | 17.0 ± 1.5 | 6.0 ± 0.5 | 0.70(0.75)±0.05 | 10±0.3 | 73±1.5 | 85±1.5 | 33±1 |
SPECIFICATIONS TABLE - 3
DESCRIPTION | CF125 | CF25 | CF50 | CF100 | CF200 | CF300 |
STANDARD RESISTANCE VALUE RANGE | 1Ω-4.7MΩ | 1Ω-4.7MΩ | 1Ω-4.7MΩ | 1Ω-4.7MΩ | 1Ω-4.7MΩ | 1Ω-4.7MΩ |
POWER RATING AT 70℃ | 1/8W | 1/4W | 1/2W | 1W | 2W | 3W |
*MAX WORKING VOLTAGE | 200V | 250V | 350V | 500V | 500V | 500V |
*MAX OVERLOAD VOLTAGE | 400V | 500V | 700V | 1,000V | 1,000V | 1,000V |
OPERATING TEMPERATURE RANGE | -55℃~+135℃ | -55℃~+135℃ | -55℃~+135℃ | -55℃~+155℃ | -55℃~+155℃ | -55℃~+155℃ |
TEMPERATURE COEFFICIENT | ||||||
≦10Ω | ±300PPM | ±300PPM | ±300PPM | ±300PPM | ±300PPM | ±300PPM |
10Ω- 220KΩ | 0~ -500PPM | 0~ -500PPM | 0~ -500PPM | 0~ -400PPM | 0~ -400PPM | 0~ -400PPM |
230KΩ- 1MΩ | 0~ -1,000PPM | 0~ -1,000PPM | 0~ -700PPM | 0~ -600PPM | 0~ -600PPM | 0~ -600PPM |
OVER 1MΩ | 0~ -1,500PPM | 0~ -1,500PPM | 0~ -1,000PPM | 0~ -1,000PPM | 0~ -1,000PPM | 0~ -1,000PPM |
TEMPERATURE CYCLING | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) |
VOLTAGE COEFFICIENT | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V |
INSULATION RESISTANCE | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ |
HUMIDITY | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
SHORT-TIME OVERLOAD | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) |
SOLDERABILITY | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED |
VIBRATION | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) |
LOAD LIFE | MAX.±5% | MAX.±5% | MAX.±5% | MAX.±5% | MAX.±5% | MAX.±5% |
* The working voltage is calculated based on the resistance value following the formula of V=√(P*R) or to its maximum extent as indicated above
* The overload voltage is calculated based on the resistance value following the formula of V= 2.5 *√(P*R) or to its maximum extent as indicated above
CHARACTERISTICS
TABLE – 5
DC RESISTANCE VALUE |
TEST METHOD MIL-STD-202 ITEM 303 | VOLTAGE AS TABLE -4. TEMPERATURE 25 ±2℃. AQL 0.25%. |
VOLTAGE WITHSTAND |
TEST METHOD MIL-STD-202 ITEM 301 | V-BLOCK METHOD. VOLTAGE AS TABLE -3 ×1.42 , 1 MIN. AQL 1%. |
SHORT TIME OVERLOAD |
TEST METHOD JIS C 5202 ITEM 5.5 | RATED VOLTAGE X 2.5 TIMES OR MAX.WORKINGVOLTAGE X 2 TIMES. ABOVE TEST 5 SEC. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω). |
TERMINAL STRENGTH |
TEST METHOD MIL-STD-202 ITEM 211 | TENSILE STRENGTH : 1KG TENSIONAL STRENGTH : 180。, 2 CYCLES. BENDING STRENGTH : 0.5KG, 2 TIMES. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(0.5%R+0.05 Ω). |
SOLDERABILITY OF TERMINAL |
TEST METHOD MIL-STD-202 ITEM 210 | 260±5℃ 10±1SEC. AFTER TESTING, LEAVE FOR 3 HOURS. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω). |
TEMPERATURE CYCLE |
TEST METHOD MIL-STD-202 ITEM 107 | LOW SIDE TEMPERATURE : -55℃±3℃ 30MIN. ROOM TEMPERATURE : 10-15MIN. HIGH SIDE TEMPERATURE :+125℃±3℃ 30MIN. ROOM TEMPERATURE : 10-15MIN. ABOVE TEST 5 CYCLES AFTER LAST CYCLE, LEAVE FOR 1-3 HOURS. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω). |
VIBRATION WITHSTAND |
TEST METHOD MIL-STD-202 ITEM 204 | X, Y, Z-EACH DIRECTION 2 HOURS. AMPLITUDE 0.75MM. RANGE : 10HZ ~ 500HZ. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω). |
LOAD LIFE |
TEST METHOD MIL-STD-202 ITEM 108 | 70。±2℃. 1000 HOURS RATED VOLTAGE (1.5 HOURS ON, 0.5 HOUR OFF). THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(5%R+0.1 Ω). |
RESISTANCE TEMPERATURE COEFFICIENT |
TEST METHOD MIL-STD-202 ITEM 304 | THE RESISTANCE VALUE CHANGE RATE SHALL BE AS TABLE – 3. |
LOAD LIFE IN HUMIDITY |
TEST METHOD MIL-STD-202 ITEM 103 | THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(5%R+0.1 Ω). |
PACKING DATA
TYPE | PER BOX | PER CARTON | INNER BOX | EXPORT CARTON | ||||
L | W | H | L | W | H | |||
CF125 | 5,000PCS | 50,000PCS | 256mm | 80mm | 69mm | 421mm | 264mm | 161mm |
CF25 | 5,000PCS | 50,000PCS | 260mm | 77mm | 100mm | 413mm | 270mm | 227mm |
CF50 | 2,000PCS | 20,000PCS | 258mm | 78mm | 80mm | 423mm | 270mm | 355mm |
CF100 | 1,000PCS | 10,000PCS | 255mm | 81mm | 72mm | 419mm | 264mm | 170mm |
CF200 | 1,000PCS | 10,000PCS | 260mm | 78mm | 87mm | 422mm | 270mm | 200mm |
CF300 | 500PCS | 5,000PCS | 255mm | 100mm | 90mm | 515mm | 267mm | 203mm |
