1.APPLICABLE SCOPE:

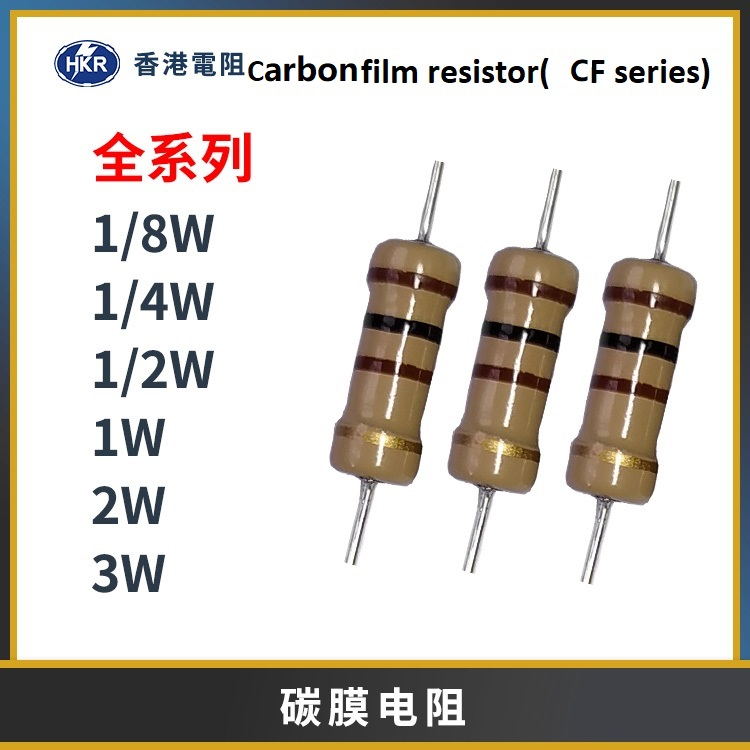

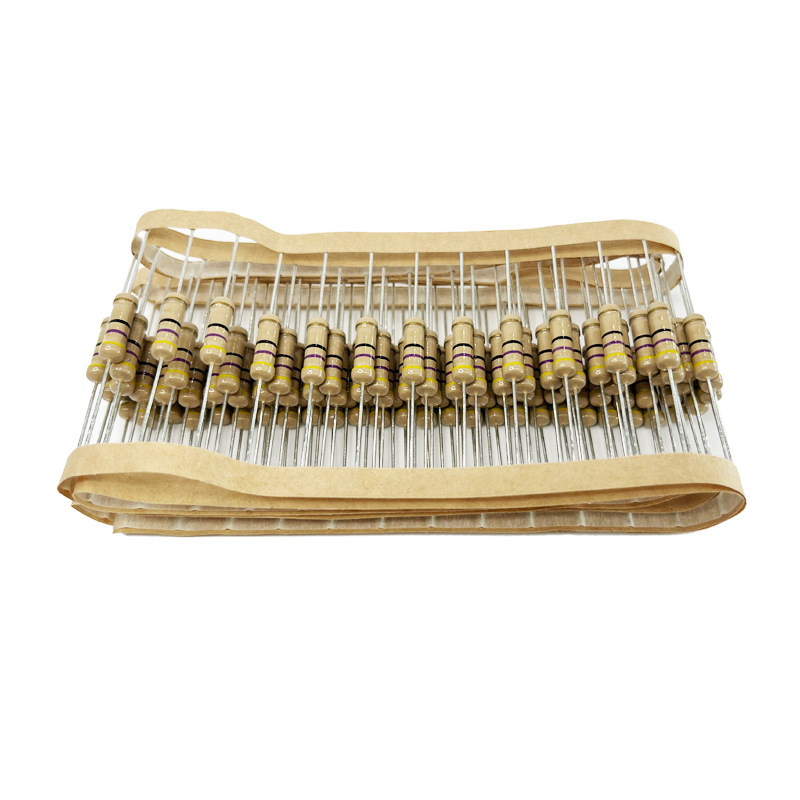

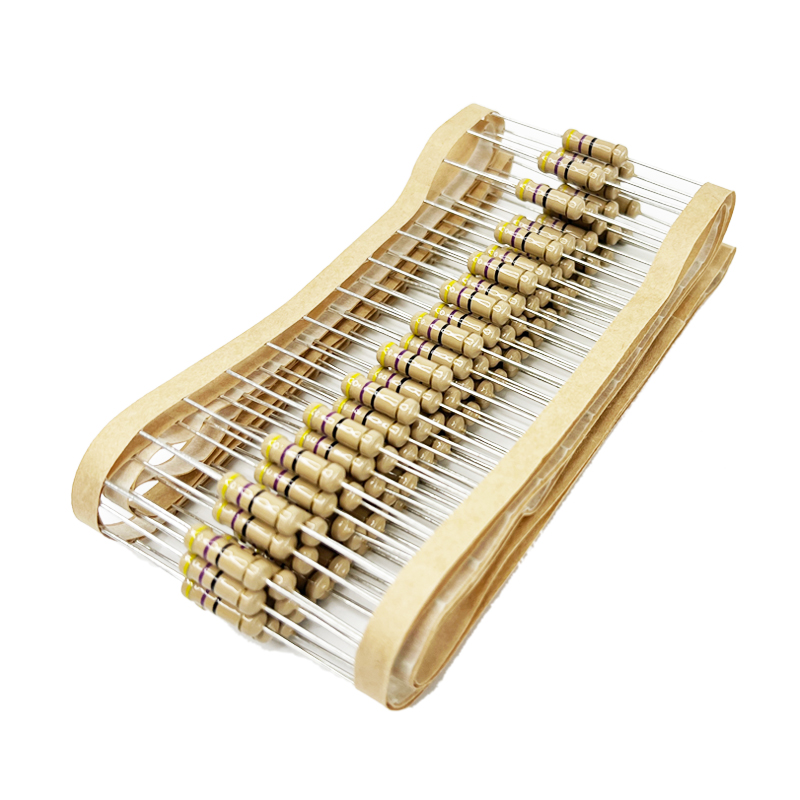

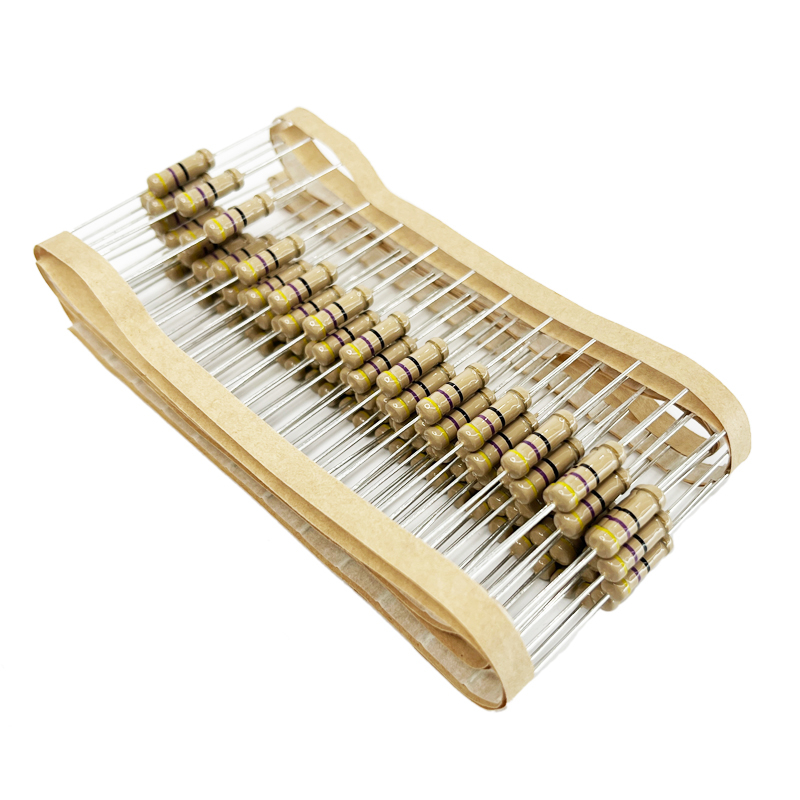

1.1 This data sheet is for use in CARBON FILM FIXED RESISTORS
1.2 Characteristics and specifications are according to those of:JIS C 5202
1.3 RoHS and REACH compliant product
| TYPE | L | D | d | P | W1 | W2 | L1 |
| CF125 | 3.5±0.5 | 1.7±0.5 | 0.40 (0.43)±0.05 | 5±0.3 | 26±1 | 38±1 | 15±1 |
| 52±1 | 64±1 | 27±1 | |||||
| CF25 | 6.0±1.0 | 2.3±0.5 | 0.40 (0.45)(0.48)±0.05 | 5±0.3 | 26±1 | 38±1 | 14±1 |
| 52±1 | 64±1 | 26±1 | |||||
| CF50 | 9.0±1.0 | 3.0±0.5 | 0.48 (0.60)±0.05 | 5±0.3 | 26±1 | 38±1 | 12±1 |
| 52±1 | 64±1 | 26±1 | |||||
| CF100 | 11.0±1.5 | 4.0±0.5 | 0.55(0.70)±0.05 | 5±0.3 | 52±1 | 64±1 | 25±1 |
| 62±1.5 | 74±1.5 | 30±1 | |||||
| CF200 | 15.0±1.5 | 5.0±0.5 | 0.70(0.75)±0.05 | 10±0.3 | 52±1 | 64±1 | 23±1 |
| 73±1.5 | 85+1.5 | 34±1 | |||||
| CF300 | 17.0 ±1.5 | 6.0 +0.5 | 0.70(0.75)±0.05 | 10±0.3 | 73±1.5 | 85±1.5 | 33±1 |
| DESCRIPTION | CF125 | CF25 | CF50 | CF100 | CF200 | CF300 |
| STANDARD RESISTANCE VALUE RANGE | 1Q-4.7MΩ | 12-4.7MΩ | 12-4.7MΩ | 12-4.7MΩ | 12-4.7MΩ | 12-4.7MΩ |
| POWER RATINGAT 70℃ | 1/8W | 1/4W | 1/2W | 1W | 2W | 3W |
| *MAX WORKING VOLTAGE | 200V | 250V | 350V | 500V | 500V | 500V |
| *MAX OVERLOAD VOLTAGE | 400V | 500V | 700V | 1,000V | 1,000V | 1,000V |
| OPERATING TEMPERATURE RANGE | -55℃~+135℃ | -55℃~+135℃ | -55℃~+135℃ | -55℃~+155℃ | -55℃~+155℃ | -55℃~+155℃ |
| TEMPERATURE COEFFICIENT | ||||||
| ≤100 | ±300PPM | ±300PPM | ±300PPM | ±300PPM | ±300PPM | ±300PPM |
| 102-220K(2 | 0～-500PPM | 0～-500PPM | 0~-500PPM | 0～-400PPM | 0～-400PPM | 0～-400PPM |
| 230K2-1M2 | 0~-1,000PPM | 0~-1,000PPM | 0~-700PPM | 0～-600PPM | 0～-600PPM | 0～-600PPM |
| OVER 1M2 | 0~-1,500PPM | 0~-1,500PPM | 0~-1,000PPM | 0~-1,000PPM | 0～-1,000PPM | 0～-1,000PPM |
| TEMPERATURE CYCLING | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.05Q) | ±(1R%+0.05②) | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) |
| VOLTAGE COEFFICIENT | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V | MAX.50PPM/V |
| INSULATION RESISTANCE | MIN.1,000MΩ | MIN.1,000MQ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ | MIN.1,000MΩ |
| HUMIDITY | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| SHORT-TIME OVERLOAD | ±(1R%+0.05Ω) | ±(1R%+0.05Ω) | ±(1R%+0.052) | ±(1R%+0.05Q) | ±(1R%+0.05Ω) | ±(1R%+0.05Q) |
| SOLDERABILITY | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED | MIN.95% COVERED |
| VIBRATION | ±(1R%+0.05(2) | ±(1R%+0.05(2) | ±(1R%+0.05Q) | ±(1R%+0.05(2) | ±(1R%+0.05(2) | ±(1R%+0.05Q) |
| LOAD LIFE | MAX.±5% | MAX.±5% | MAX±5% | MAX.±5% | MAX±5% | MAX±5% |
* The working voltage is calculated based on the resistance value following the formula of V=√(P*R) or to its maximum extent as indicated above
* The overload voltage is calculated based on the resistance value following the formula of V= 2.5 *√(P*R) or to its maximum extent as indicated above
| DC RESISTANCE VALUE | TEST METHOD MIL-STD-202 ITEM 303 | VOLTAGEAS TABLE -4. TEMPERATURE 25 +2℃. AQL 0.25%. |
| VOLTAGE WITHSTAND | TEST METHOD MIL-STD-202 ITEM 301 | V-BLOCK METHOD VOLTAGEAS TABLE-3 x1.42, 1 MIN. AQL1% |
| SHORT TIME OVERLOAD | TEST METHOD JIS C 5202 ITEM 5.5 | RATED VOLTAGE x 2.5 TIMES OR MAX.WORKINGVOLTAGE x 2 TIMES ABOVE TEST 5 SEC. THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(1%R+0.05Ω) |
TERMINAL STRENGTH | TEST METHOD MIL-STD-202 ITEM 211 | TENSILE STRENGTH:1KG TENSIONAL STRENGTH:180,2 CYCLES. BENDING STRENGTH:0.5KG 2 TIMES. THE RESISTANCE VALUE CHANGE RATE SHALLBE WITHIN ±(0.5%R+0.05Ω) |
| SOLDERABILITY OF TERMINAL | TEST METHOD MIL-STD-202 ITEM 210 | 260±5℃ 10±1SEC. AFTER TESTING,LEAVE FOR 3 HOURS. THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05Ω) |
| TEMPERATURE CYCLE | TEST METHOD MIL-STD-202 ITEM 107 | LOW SIDE TEMPERATURE:-55C±3℃ 30MIN. ROOM TEMPERATURE:10-15MIN. HIGH SIDE TEMPERATURE :+125℃±3℃ 30MIN. ROOM TEMPERATURE:10-15MIN. ABOVE TEST5 CYCLES AFTER LAST CYCLE,LEAVE FOR 1-3 HOURS THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω) |
| VIBRATION WITHSTAND | TEST METHOD MIL-STD-202 ITEM 204 | X,Y,Z-EACH DIRECTION 2 HOURS. AMPLITUDE 0.75MM. RANGE:10HZ～500HZ THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(1%R+0.05 Ω) |
| LOAD LIFE | TEST METHOD MIL-STD-202 ITEM 108 | 70±2℃. 1000 HOURS RATED VOLTAGE(1.5 HOURS ON,0.5 HOUR OFF) THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(5%R+0.1Ω) |
| RESISTANCE TEMPERATURE COEFFICIENT | TEST METHOD MIL-STD-202 ITEM 304 | THE RESISTANCE VALUE CHANGE RATE SHALL BE ASTABLE-3 |
| LOAD LIFE IN HUMIDITY | TEST METHOD MIL-STD-202 ITEM 103 | THE RESISTANCE VALUE CHANGE RATE SHALL BE WITHIN ±(5%R+0.1Ω) |
